• | JDBC applications and Derby basics Basic
details for using Derby,
including loading the JDBC driver, specifying a database URL, and starting Derby. | |
• | After installing Explains
the installation layout. | |
• | Deploying Derby applications An
overview of different deployment scenarios, and tips for getting the details
right when deploying applications. | |
• | Controlling Derby application behavior JDBC, cursors, locking and isolation levels, and multiple connections. | |
• | Using Derby as a J2EE resource manager Information
for programmers developing back-end components in a J2EE system. | |
• | Developing tools and using Derby with an IDE Tips
for tool designers. | |
• | SQL tips Insiders'
tricks of the trade for using SQL. | |
• | Localizing Derby An overview
of database localization. |
• | marks the database as upgraded to the current release (Version 10.4). | |
• | allows use of new features. |
1.
| Back up your database to a safe location using Derby online/offline
backup procedures. For more information on backup, see the Derby Server and Administration Guide. | |
2.
| Update your CLASSPATH with the latest jar files. | |
3.
| Make sure that there are no older versions of the Derby jar
files in your CLASSPATH. You can determine if you have multiple versions of Derby in your CLASSPATH by using the sysinfo tool. To use the sysinfo tool,
execute the following command: The sysinfo tool uses information found in the Derby jar files to determine the version of any Derby jar in your CLASSPATH. Be sure that you have only one version of the Derby jar files specified in your CLASSPATH. |
• | Back up your database before you upgrade. | |
• | Ensure that only the new Derby jar
files are in your CLASSPATH. |
• | A full upgrade is a complete upgrade of the Derby database.
When you perform a full upgrade, you cannot connect to the database with an
older version of Derby and
you cannot revert back to the previous version. | |
• | A soft upgrade allows you to run a newer version of Derby against
an existing database without having to fully upgrade the database. This means
that you can continue to run an older version of Derby against
the database. However, if you perform a soft upgrade, certain features will
not be available to you until you perform a full upgrade. |
1.
| To upgrade the database, select the type of upgrade that you want
to perform:
|
• | SYNONYMS | |
• | Creating tables using the GENERATED BY DEFAULT option for identity columns | |
• | Reclaiming unused space using the SYSCS_UTIL.SYSCS_INPLACE_COMPRESS_TABLE
procedure |
• | GRANT/REVOKE | |
• | Online backup procedures SYSCS_UTIL.SYSCS_BACKUP_DATABASE_NOWAIT and
SYSCS_UTIL.SYSCS_BACKUP_DATABASE_AND_ENABLE_LOG_ARCHIVE_MODE_NOWAIT. | |
• | The encryption or re-encryption of a database with a new phrase/key. |
1.
| Simply connect to the database, as shown in the following example: In this example, the sample database is a Version 10.0 database. |
Class.forName("org.apache.derby.jdbc.EmbeddedDriver");
java -Djdbc.drivers=org.apache.derby.jdbc.EmbeddedDriver applicationClass
• | you can specify the name of the database you want to connect to | |
• | you can specify a number of attributes and values that allow you to accomplish
tasks. For more information about what you can specify with the Derby connection
URL, see Database connection examples. |
jdbc:derby:[subsubprotocol:][databaseName][;attribute=value]*
• | directory: The default. Specify this explicitly only to distinguish
a database that might be ambiguous with one on the class path. | |
• | classpath: Databases are treated as read-only databases, and all databaseNames must
begin with at least a slash, because you specify them "relative" to the classpath
directory. See Accessing databases from the classpath for details. | |
• | jar: Databases are treated as read-only databases. DatabaseNames might
require a leading slash, because you specify them "relative" to the jar file.
See Accessing databases from a jar or zip file for details.
jar requires an additional element immediately before the
database name:
pathToArchive is the path to the jar or zip file that holds
the database. |
Connection conn = DriverManager.getConnection("jdbc:derby:sample");
2006-10-04 03:54:06.196 GMT: Booting Derby version Apache Derby - 10.2.1.5 - (448900): instance c013800d-00fd-0cb0-e736-ffffd1025a25 on database directory sample
DriverManager.getConnection("jdbc:derby:;shutdown=true");
Sat Jan 10 14:31:54 PDT 2005: Shutting down instance 80000001-00d0-8bdf-d115-000a0a0b2d00
ERROR XJ040: Failed to start database 'sample', see the next exception for details. ERROR XSDB6: Another instance of Derby might have already booted the databaseC:\databases\sample.
WARNING: Derby (instance 80000000-00d2-3265-de92-000a0a0a0200) is attempting to boot the database /export/home/sky/wombat even though Derby (instance 80000000-00d2-3265-8abf-000a0a0a0200) might still be active. Only one instance of Derby should boot a database at a time. Severe and non-recoverable corruption can result and might have already occurred.
Sat Aug 14 09:42:51 PDT 2005: Booting Derby version Apache Derby - 10.0.0.1 - (29612): instance 80000000-00d2-1c87-7586-000a0a0b1300 on database at directory C:\tutorial_system\sample ------------------------------------------------------------ Sat Aug 14 09:42:59 PDT 2005: Booting Derby version Apache Derby - 10.0.0.1 - (29612): instance 80000000-00d2-1c87-9143-000a0a0b1300 on database at directory C:\tutorial_system\HelloWorldDB

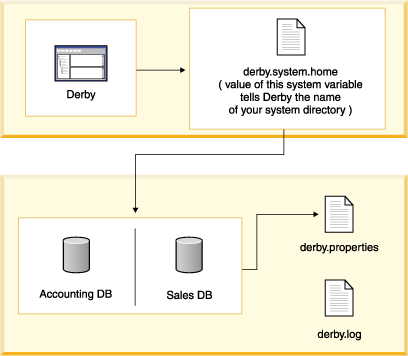

• | All databases exist within a system. | |
• | System-wide properties affect the entire system, and persistent system-wide
properties live in the system directory. | |
• | You can boot all the databases in the system, and the boot-up times of
all databases affect the performance of the system. | |
• | You can preboot databases only if they are within the system. (Databases
do not necessarily have to live inside the system directory, but keeping
your databases there is the recommended practice.) | |
• | Once you connect to a database, it is part of the current system and thus
inherits all system-wide properties. | |
• | Only one instance of Derby can
run in a JVM at a single time, and only one instance of Derby should
boot a database at one time. Keeping databases in the system directory makes
it less likely that you would use more than one instance of Derby. | |
• | The error log is located inside the system directory. |
• | log directory Contains files that make up the database transaction
log, used internally for data recovery (not the same thing as the error log). | |
• | seg0 directory Contains one file for each user table, system
table, and index (known as conglomerates). | |
• | service.properties file A text file with internal configuration
information. | |
• | tmp directory (might not exist.) A temporary directory used
by Derby for large sorts
and deferred updates and deletes. Sorts are used by a variety of SQL statements.
For databases on read-only media, you might need to set a property to change
the location of this directory. See "Creating Derby Databases
for Read-Only Use". | |
• | jar directory (might not exist.) A directory in which jar files
are stored when you use database class loading. |
Type of Object | Limit |
tables in each database | java.lang.Long.MAX_VALUE Some operating systems
impose a limit to the number of files allowed in a single directory. |
indexes in each table | 32,767 or storage |
columns in each table | 1,012 |
number of columns on an index key | 16 |
rows in each table | No limit. |
size of table | No limit. Some operating systems impose a limit on the
size of a single file. |
size of row | No limit. Rows can span pages. Rows cannot span tables
so some operating systems impose a limit on the size of a single file, which
results in limiting the size of a table and size of a row in that table. |
jdbc:derby:myDB
Connection conn =DriverManager.getConnection("jdbc:derby:myDB");
jdbc:derby:../otherDirectory/myDB jdbc:derby:c:/otherDirectory/myDB
• | refer to a previously created Derby database | |
• | specify the create=true attribute |
